SAT C38 DB Disc Brake Clincher/Tubeless

SAT C38 DB Disc Brake Clincher/Tubeless

$960.00 – $1,940.00

Features:

UCI Approved
3 Years Limited Warranty

Yoeleo SAT Technology
No Outer Holes on Tire Bed
Wheels Strength +30%
Inflation Capacity +10%
No Rim Tapes Required = -30g

Super Light Rim
T800 Carbon Fiber / No Brake Track for Better Aerodynamics

Tubeless Technology
Compatible with Both Clincher and Tubeless Tires
No Rim Sealing Tapes Needed for Tubeless Tires

SKU: N/A Categories: , , Tags: , , , , , , ,

Description

YOELEO SAT (Special Assembly Technology)
YOELEO SAT technology is an assembly process to build wheels without requiring spoke holes in the tire bed. No holes means no damage to the carbon weaving!Advantages of SAT technology wheels？
a. Increase in 30% strength
b. SAT wheels perform better at bumps and pot holes
c. Inflation pressure increases 10%
d. No rim tape, saves 30g!
Tubeless Technology
Compatible with Both Clincher and Tubeless Tires
No Rim tapes needed for Tubeless Tires.
The design of the cross section allows for easier tubeless tire installation. For some tires, a standard floor pump is all that’s needed.
Straight Pull Technology

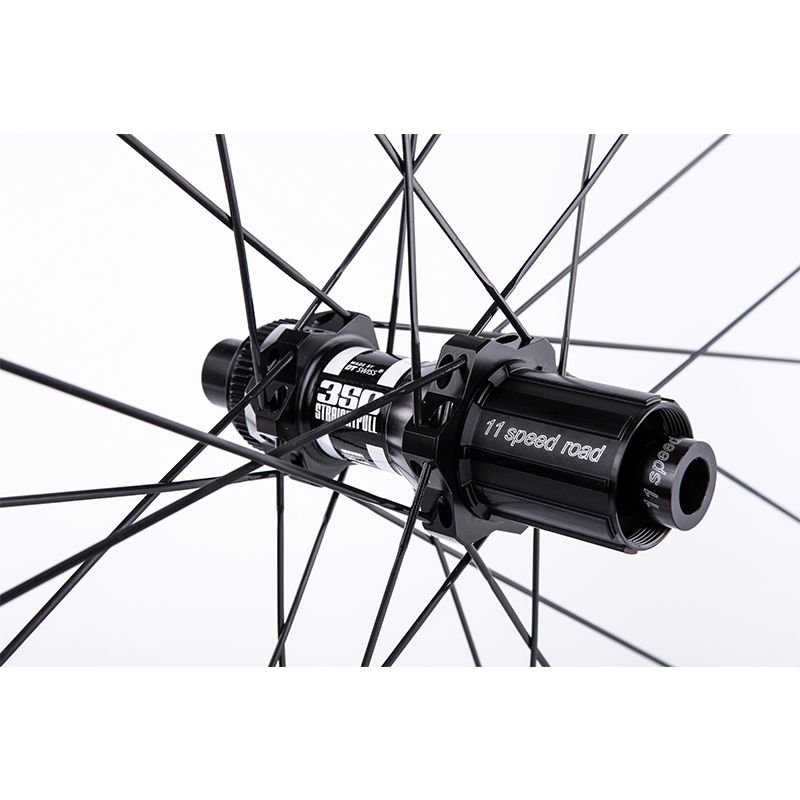

Straight pull DT Swiss 350 or 240s hubs for our PRO and PRO+ series carbon wheels.
Straight pull spokes are stronger than the traditional J-Bend spokes and the result is a stiffer and more responsive wheel.
Ratchet System Technology
The DT Swiss 350 or 240s hubs with ratchet system technology.The patented freewheel system, which features high-precision star ratchets, guarantees top performance and reliability.
The no-tool concept allows extremely simple and quick maintenance.
Secure Lock Nipples
Newly patented Secure Lock nipple of Sapim has a locking mechanism that prevents nipples from loosening which makes it easy for the mechanic and a lasting build for the rider.



Strict Quality Control
We employ strict quality control measures to ensure we deliver excellent quality wheels to customers.

  1. Vertical Stiffness test: 300kgf
  2. Torsion Test: 50kgf
  3. Spoke Tension Test: 300kgf
  4. Braking Test: High temperature resistance
  5. Road condition simulation test: Distance:1000km, Speed:45kph
  6. Double stress relief process: Ensures stable and perfect roundness and trueness, eliminating the need for trueing the wheels for a long period of time
  7. UCI Impact Test: 40J(UCI Standard), 80J(YOELEO Standard)



Additional information

DECALS

Black Glossy Permanent, No (Comes with stickers)
SIZE

700C
WEAVE FINISH

UD Matte
RIM DEPTH

38mm
RIM WIDTH

25mm
RIM PROFILE

U-Shaped
HUB CHOICE

STD – Novatec Hubs D791SB / D792SB 6 Bolt Disc Brake with ABG Technology, SL (Super Light) – Novatec D411SB / D412SB Disc Brake Center Lock, PRO – DT Swiss 350, PRO+ – DT Swiss 240
FREEHUB BODY

for Shimano/SRAM – 10/11 Speed, for Campagnolo – 10/11 speed, for SRAM XDR
HUB WEIGHT

STD – Front 155g / Rear 274g, SL (Super Light) – Front 79g / Rear 229g, PRO – Front 130g / Rear 267g, PRO+ – Front 118g / Rear 220g
O.L.D. Front

QR x 100mm, 12 x 100mm Thru Axle, 15*100mm Thru Axle
O.L.D. REAR

QR x 135mm, 12 x 135mm Thru Axle, 12 x 142mm Thru Axle
SPOKES

Pillar 1432, Pillar Wing, Sapim CX Ray +$100, Sapim CX Ray
WHEELSET WEIGHT

STD – 1734g, SL – 1500g, PRO – 1588g, PRO+ – 1528g
SPOKE COUNT

Front 24H, Rear 24H
RECOMMENDED TIRE WIDTH

700×25 for 25mm
TUBE COMPATIBILITY

Presta
RIDER WEIGHT LIMIT

231lbs / 105kg
MAX TIRE PRESSURE

125 PSI / 8.6 BAR
INCLUDED ACCESSORIES

Valve Extenders (2pcs)
AXLE

Front QR x 100mm Rear QR x 135mm (Not Available For DT240EXP), Front 12 x 100mm Rear 12 x 142mm, Front 15 x 100mm Rear 12 x 142mm
