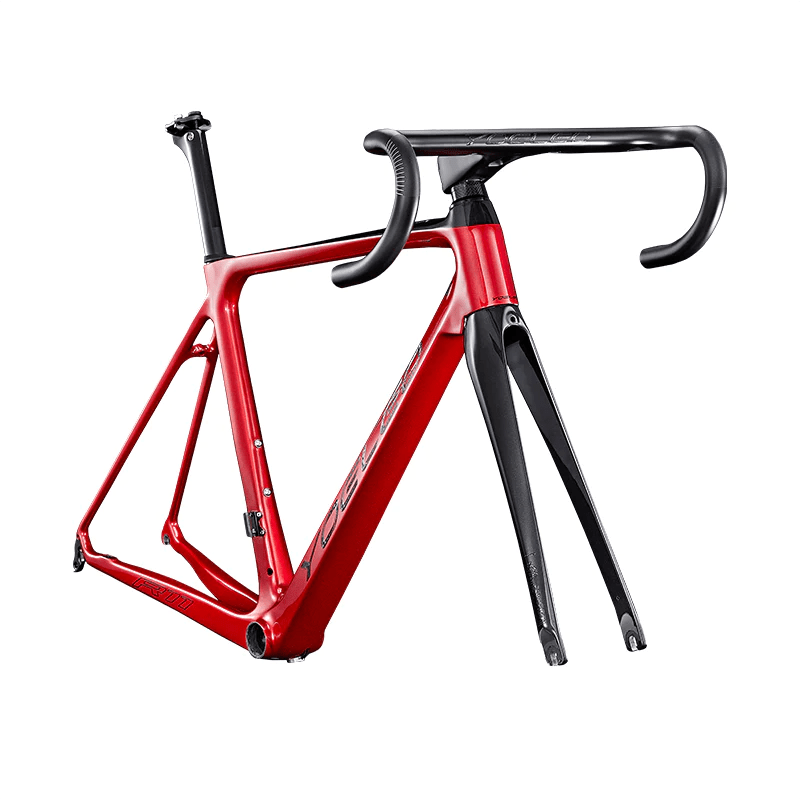

R11 Superlight Rim Brake Frameset

$1,520.00$1,940.00

R11 SUPER LIGHT DISC BRAKE FRAMESET – NEW IMPROVED 2021 VERSION

Fast, stiff, and the lightest frame in our line up. Everything you loved about the R11 makes a comeback in 2021 with new improvements!

Key improvements/changes for 2021
1. Wider Tire Clearance: max 30c (28c for previous version)

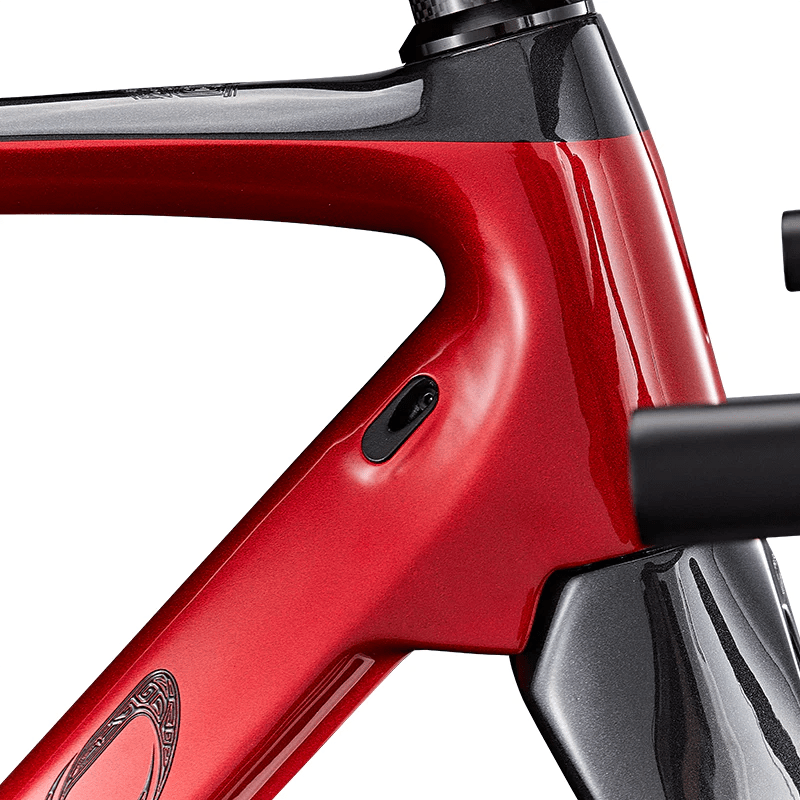

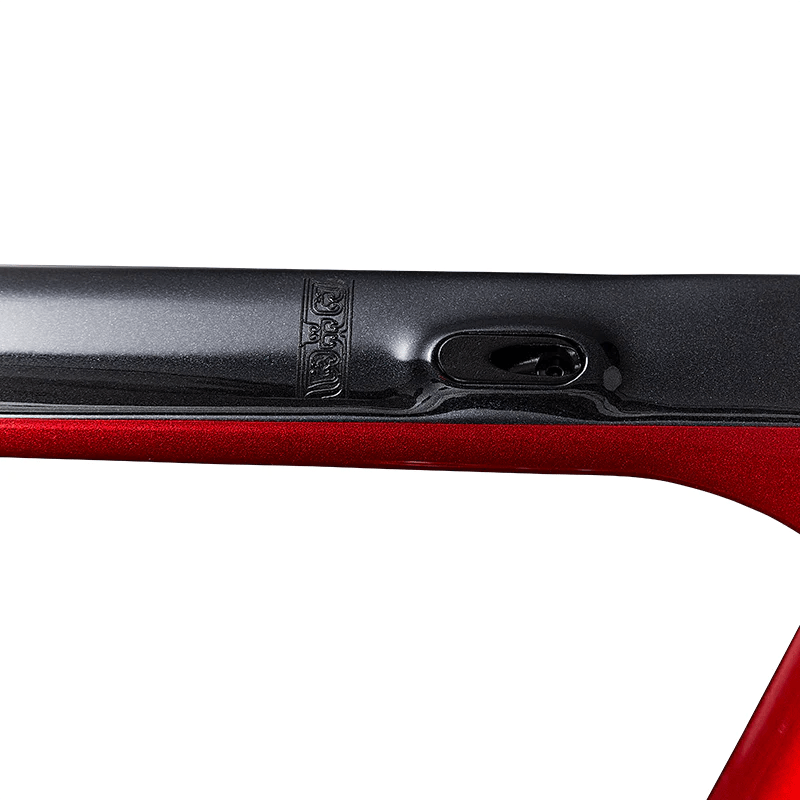

2. Full internal cable routing
3. New EPS+Latex frame molding tech makes frameset lighter and smoother for cable routing



Clear
SKU: N/A Categories: , , Tags: , ,

Description

The All New 2021 YOELEO R11 Rim Brake



Weight is the holy grail whenever we do hill climb reps. With that in mind, the all-new 2021 Yoeleo R11 is the lightest bike in our stable. By hiding all the cables inside the frame, we’ve subtly improved aerodynamics without compromising the handling, and the new EPS+Latex molding technology allows us to further reduce the frame weight to a mere 850g (size 54). If hill climbs are your thing, then the R11 is the perfect choice for you!

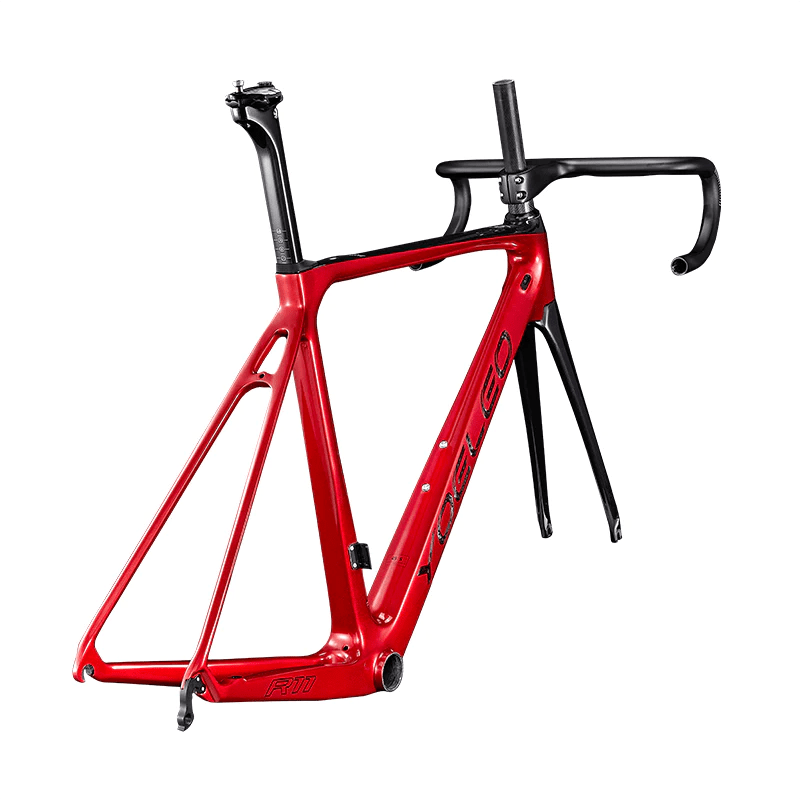

Frameset Includes:
– R11 Super Light Rim Brake – 2021 Version

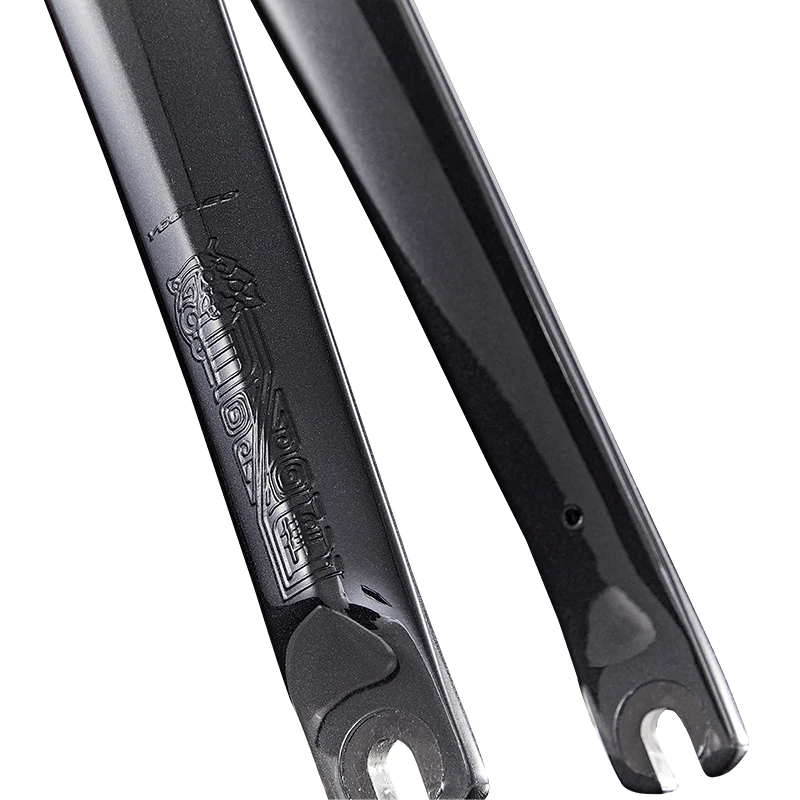

– Yoeleo Carbon Aero Rim Brake Fork (Flat Mount)

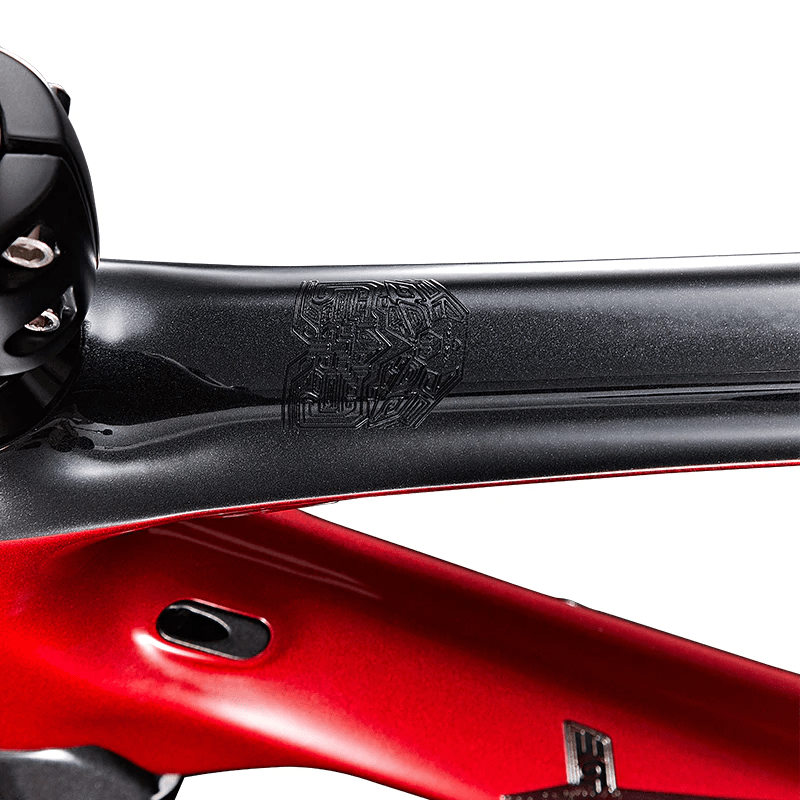

– R11 Super Light Seat Post

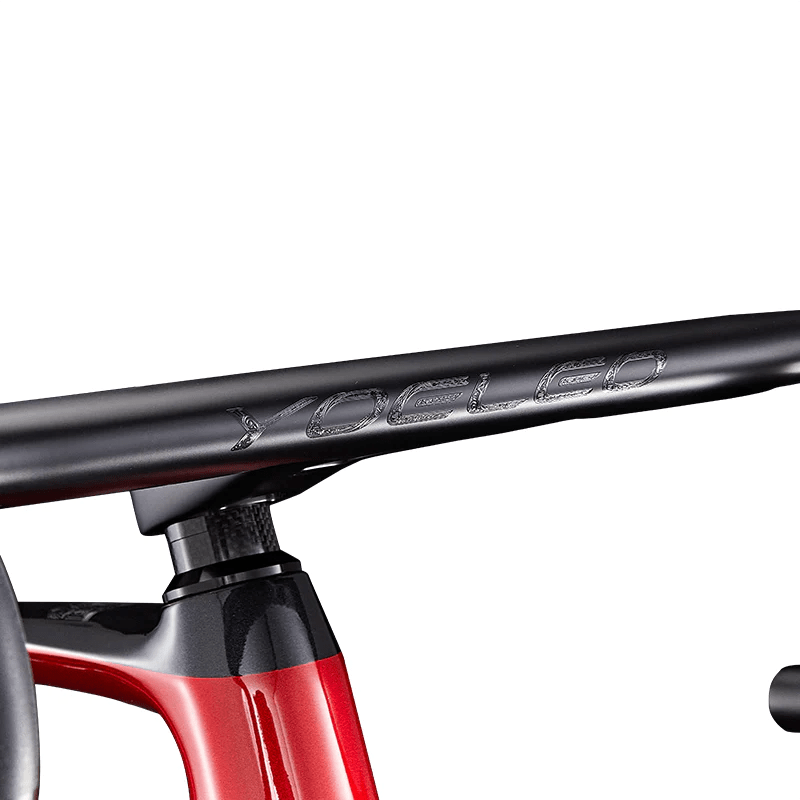

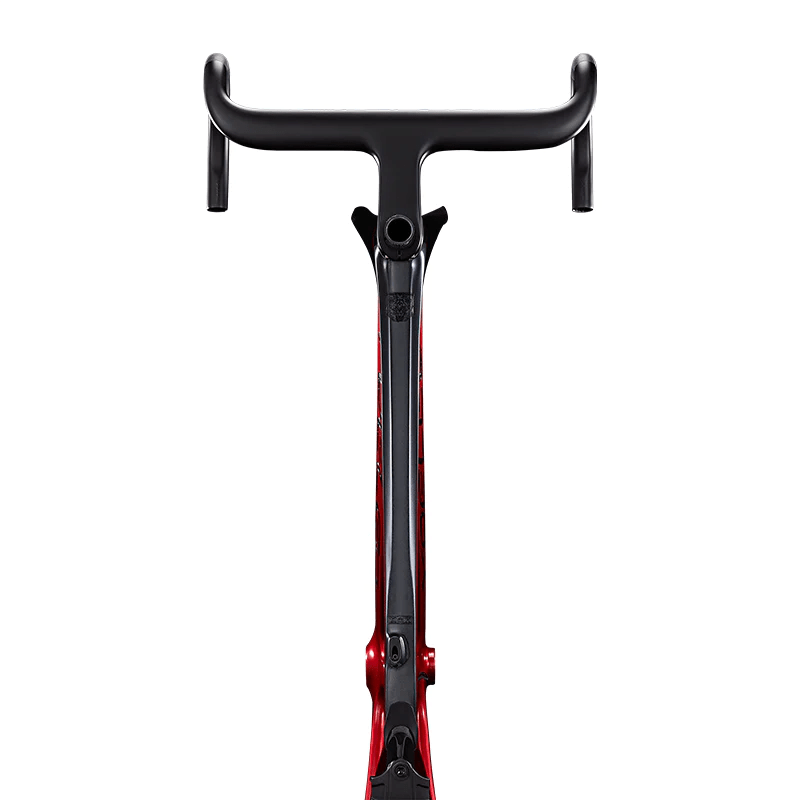

– Carbon Handlebar

Available Colors:
– Chameleon
– Lightning Yellow
– Navy Blue
– Night Black
– Pearly White
– Pinky Dust
– Red Candy
– Stealth Black

* Custom color designs are available, please contact us with more information about your design.
– A non-refundable deposit of SGD1000 is required for custom color frame options
– Complexity of design, type and number of colors used, decal design and color will affect final pricing. Please check with us for a final quote.



Geometry



Size Recommendation



Videos

Rigorous Frame Testing Protocol

Strict quality control process ensures excellent frameset quality.
1.Pedaling Fatigue Test : Load 1100N , 100000 Cycles
2.Vertical Fatigue Test: Load 1200N , 50000 Cycles
3.Horizontal Fatigue Test: Load 600N , 100000 Cycles
4.Vibration Fatigue Test: Load ST:20KG,BB:40kg,HT:10kg , 30000 Cycles
5.Impact Test (Falling Mass): Falling height 212mm, Farmar weight: 22.5 KG.
6.Rigid Test (Falling Frame): Load ST:30KG, BB:50kg, HT:10kg, 2 Cycles





Additional information

Color

Chameleon +$420, Pearly White, Lightning Yellow, Navy Blue, Night Black, Pinky Dust, Stealth Black, Red Candy

Size

49cm, 52cm, 54cm, 56cm, 59cm

Handlebar Size

380mm, 400mm, 420mm, 440mm

BB

BB86

Stem Length

90mm, 100mm, 110mm, 120mm

Material

High Modulus Toray 1000 Carbon Fiber

Carbon Weave

UD

Groupset Compatibility

Mechanical and Di2 compatible

Rear Dropout

130mm QR

Headtube

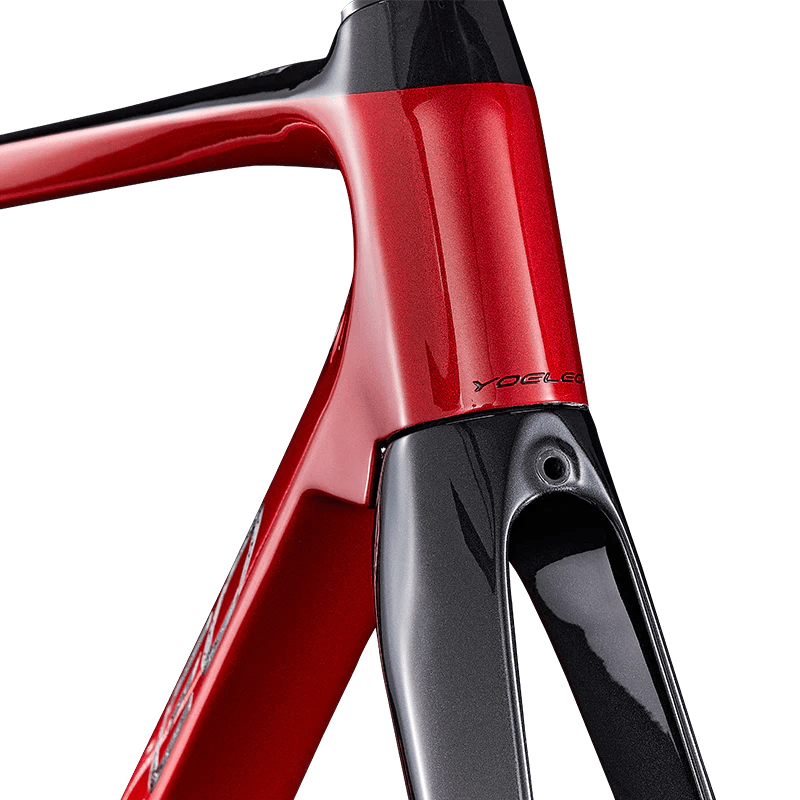

Tapered 1-1/8” to 1-1/2”

Fork

Yoeleo Carbon Aero Direct Mount Rim Brake Fork, 100mm QR

Fork Offset

45˚

Rear Derailleur Hanger

Replaceable

Brake Mount

Direct Mount Rim Brake

Max Tire Clearance

30mm

Cable

 Internal cable routing

Frame Weight

850g(54cm)

Fork Weight

390g

Seatpost Weight

204g

Accessories

Di2 cover 2pcs, Spare Rear Hangar 1pc

Max Rider Weight

105KG

Warranty

3 Years
